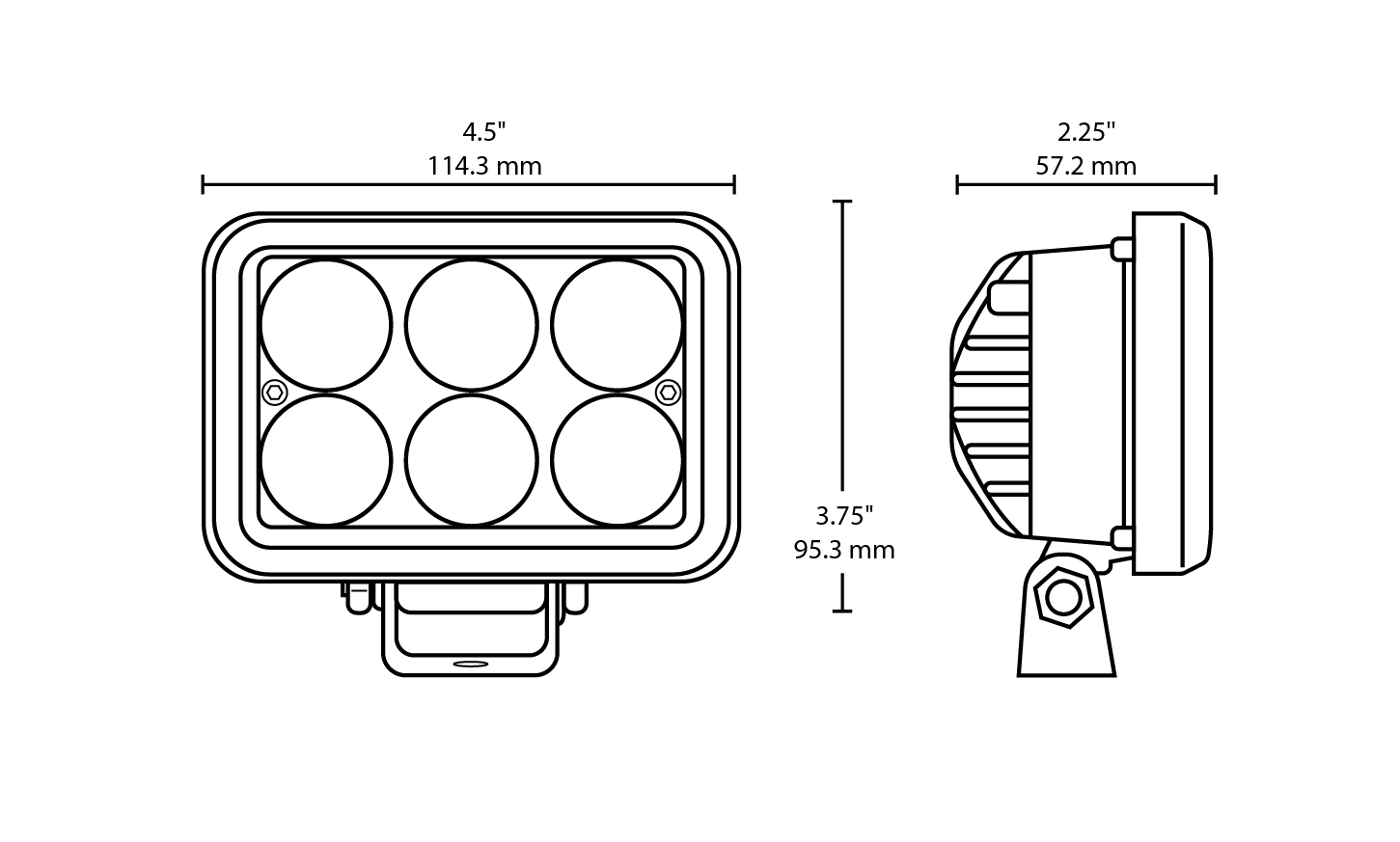

TECHNICAL DRAWINGS
- Drawings are set to inch-scale
- Click drawing above to open full size schematic
- Right-click and select "save Picture/Image as..."
4" WHITE & AMBER LED SPOT LIGHT – 2 PACK
High output LED light provides powerful, weatherproof lighting.
- 12 HIGH PERFORMING 1.5W LEDs
- 900 RAW / 575 EFFECTIVE LUMENS
- OFF-ROAD TOUGH
- WEATHERPROOF / DUSTPROOF / RUSTPROOF / SHAKEPROOF
- 30,000 HOURS – LONG LASTING
- Able to withstand shock, vibration and extreme temperature
- Superior operational lifespan
- More durable than incandescent and halogen bulbs
- No warm up period – lights up instantly
- Tough on vibration: Exceeds SAE J575 requirement
- Comprehensive safeguard against dust and water: IP67 rating
SPECIFICATIONS
Voltage: 12-24V
Amp: 0.8A
Weatherproof: Yes
Weight: 10.8 oz / .29 kg
12 LEDS: 18 total watts
Housing Material: Die cast aluminum
Lens Material: High impact polycarbonate (PC)
Light Temperature: 7000K
INCLUDES
- Set of two 4" LED spot lights
- Adjustable mounting bracket
- All hardware and instructions to mount the system
INSTRUCTIONS
WARNING
Please check local and state laws before installing this product onto your vehicle
