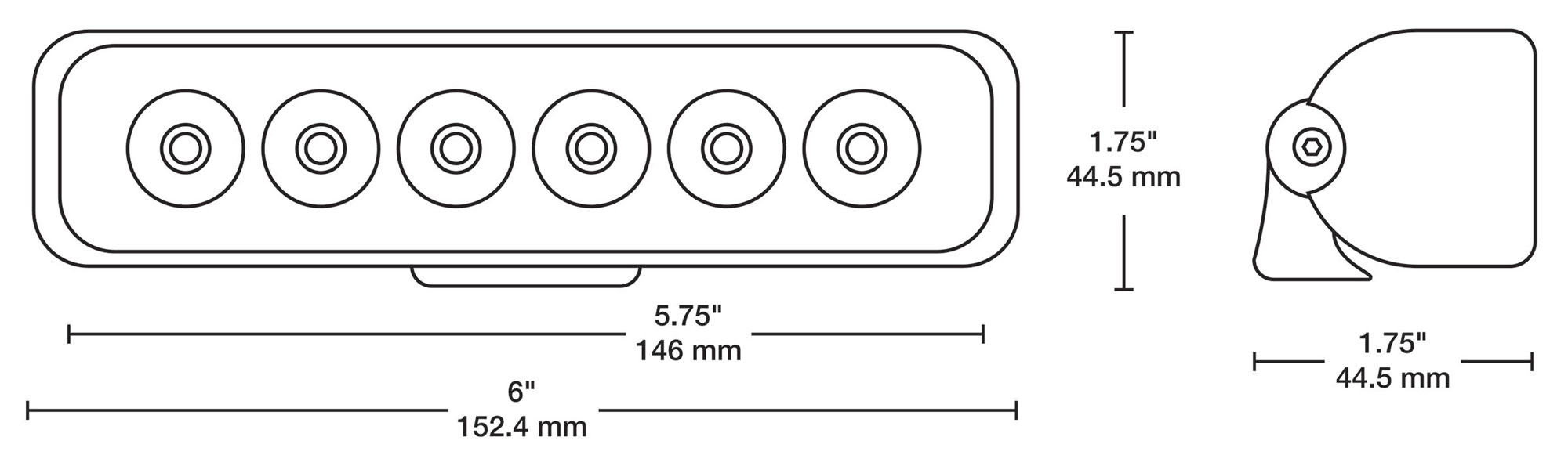

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Click drawing above to open full size schematic
  • Right-click and select "save Picture/Image as..."











6" LED SPOT LIGHT BAR

Single row LED light provides powerful, weatherproof lighting.



  • 6 LEDs
  • 900 RAW / 630 EFFECTIVE LUMENS
  • OFF-ROAD TOUGH
  • WEATHERPROOF / DUSTPROOF / RUSTPROOF /  SHAKEPROOF
  • 30,000 HOURS – LONG LASTING



  • Spot Light FOCO 16 LUX @ 50FT/15M



SPECIFICATIONS

900 RAW Lumens/630

Voltage: 12-24V

Amp: 0.5

Waterproof Rating: IP67

Weight: 2.1 lbs

6 LEDs: 3 Watts Per

Housing Material: Die-Cast Aluminum

Lens Material: Polycarbonate



INCLUDES

  • Adjustable Mounting Bracket
  • All Hardware and Instructions to Mount the System



INSTRUCTIONS

Instruction Sheet



WARNING

Please check local and state laws before installing this product onto your vehicle
