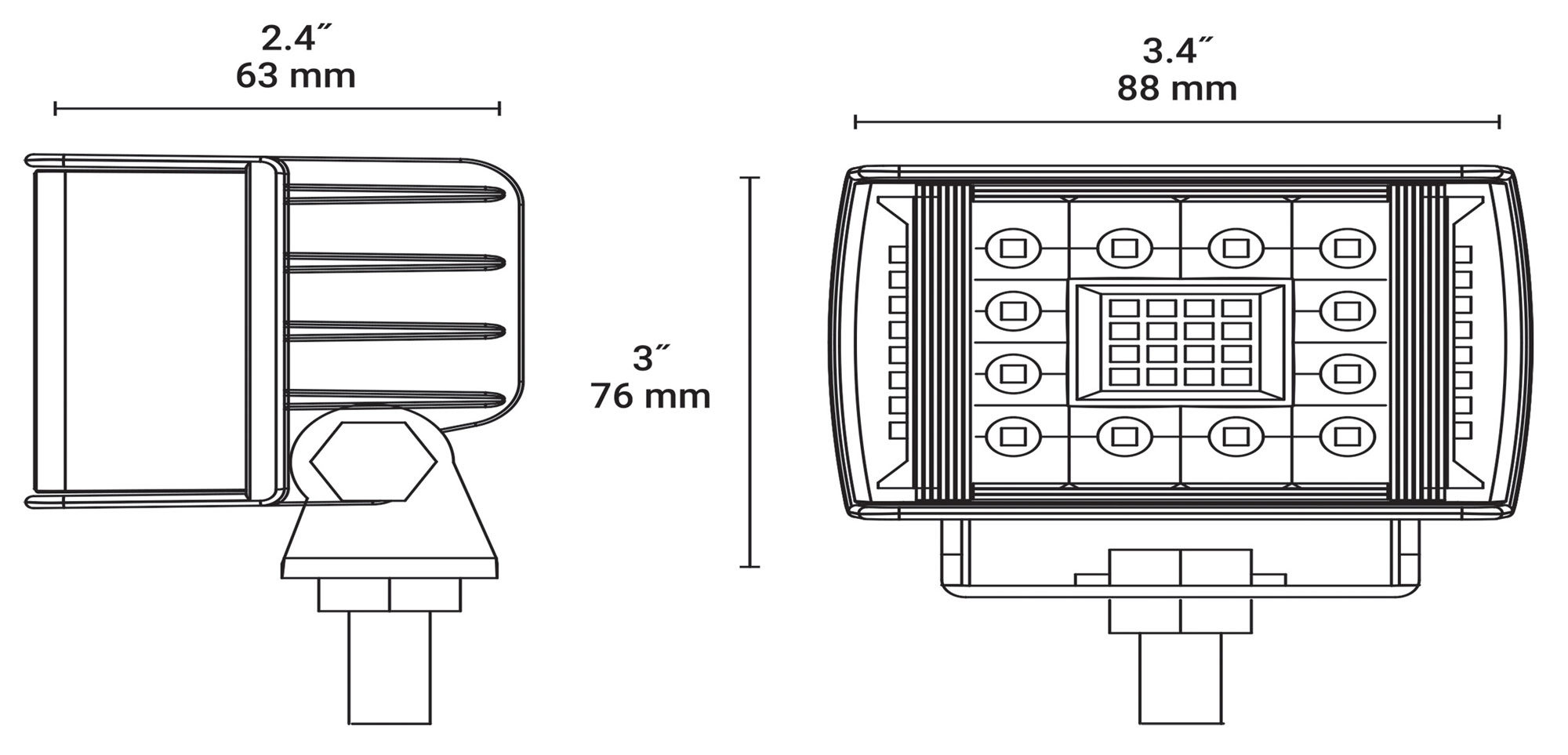

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Click drawing above to open full size schematic
  • Right-click and select "save Picture/Image as..."











3.5" x 2.5" LED SPOT/FLOOD LIGHT

Wide-beam light provides illumination for back-up, trailer hitch, load/unload or site lighting, as needed. Versatile and useful light on almost any type of equipment or vehicle.



  • 44 LEDs
  • 2500 RAW / 1500 EFFECTIVE LUMENS
  • OFF-ROAD TOUGH
  • WEATHERPROOF / DUSTPROOF / RUSTPROOF /  SHAKEPROOF
  • 30,000 HOURS – LONG LASTING



SPECIFICATIONS

Voltage: 12-24V

Amp: 1A

Waterproof: Yes

Weight: 1 lb 6.3 oz

Housing Material: Die-Cast Aluminum

Lens Material: High-Impact Polycarbonate

Light Temperature: 5500K



INCLUDES

  • Adjustable Mounting Bracket
  • All Hardware and Instructions to Mount the System



INSTRUCTIONS

Instruction Sheet



WARNING

Please check local and state laws before installing this product onto your vehicle
