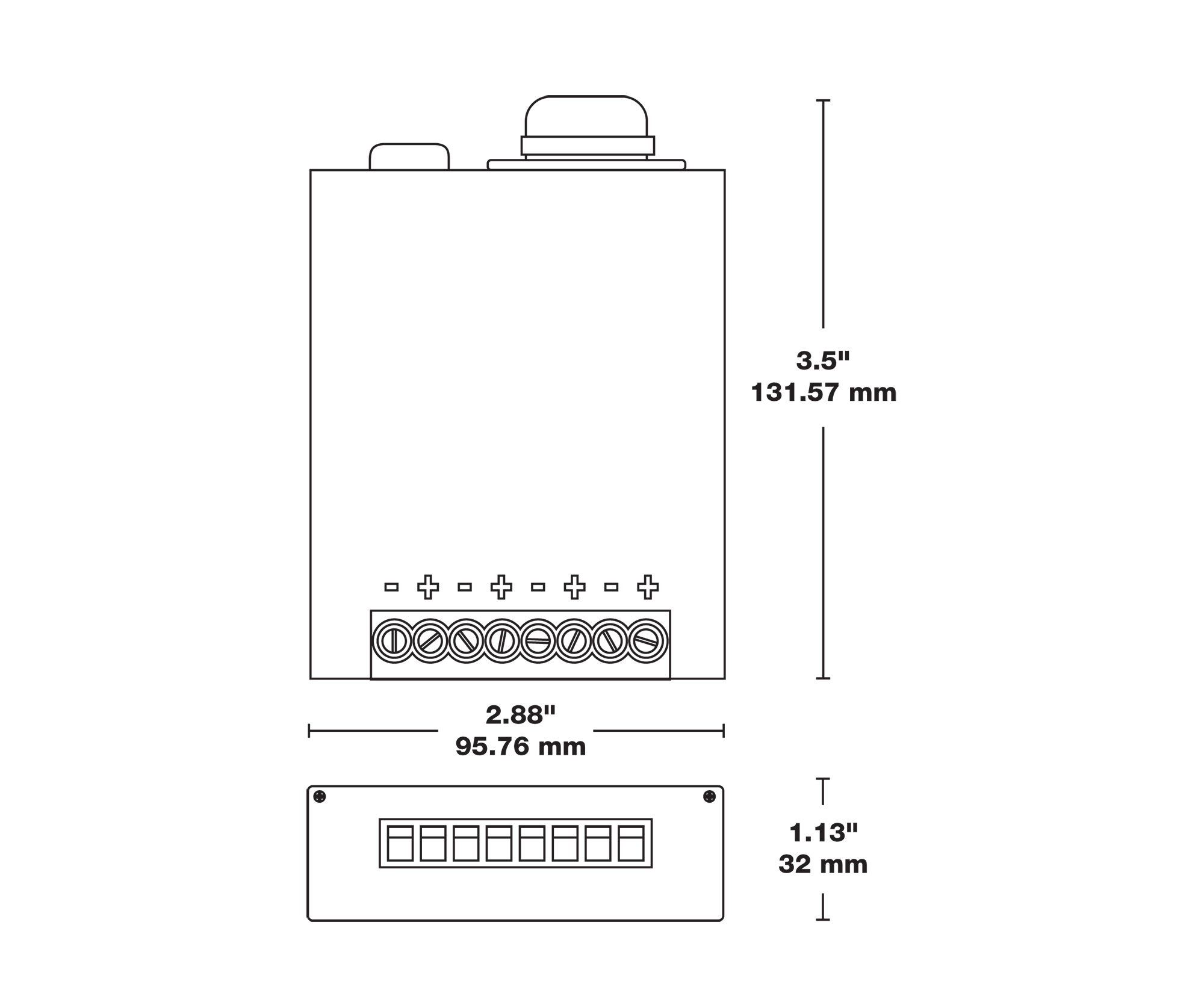

TECHNICAL DRAWINGS
- Drawings are set to inch-scale
- Click drawing above to open full size schematic
- Right-click and select "save Picture/Image as..."
REMOTE CONTROLLED LIGHTING SYSTEM
4 channel wireless remote and hub controls 4+ lights.
- CONTROL 4+ LIGHTS
- 100' WIRELESS RANGE
- PATENT PENDING SLEEP FUNCTION
- NO DRILLING IN FIREWALL
- FASTER INSTALL TIME
- Automatically turns off after 48 hours preventing damage to the lights and battery
- 40 amp fuse
SPECIFICATIONS
Voltage: 12v
Housing Material: Die Cast Aluminum
Housing Color: Black
Attachment Method: 3M Tape, Screw-on
INCLUDES
- Remote
- Hub
- 3M Adhesive Tape
- Mounting Screws
INSTRUCTIONS
