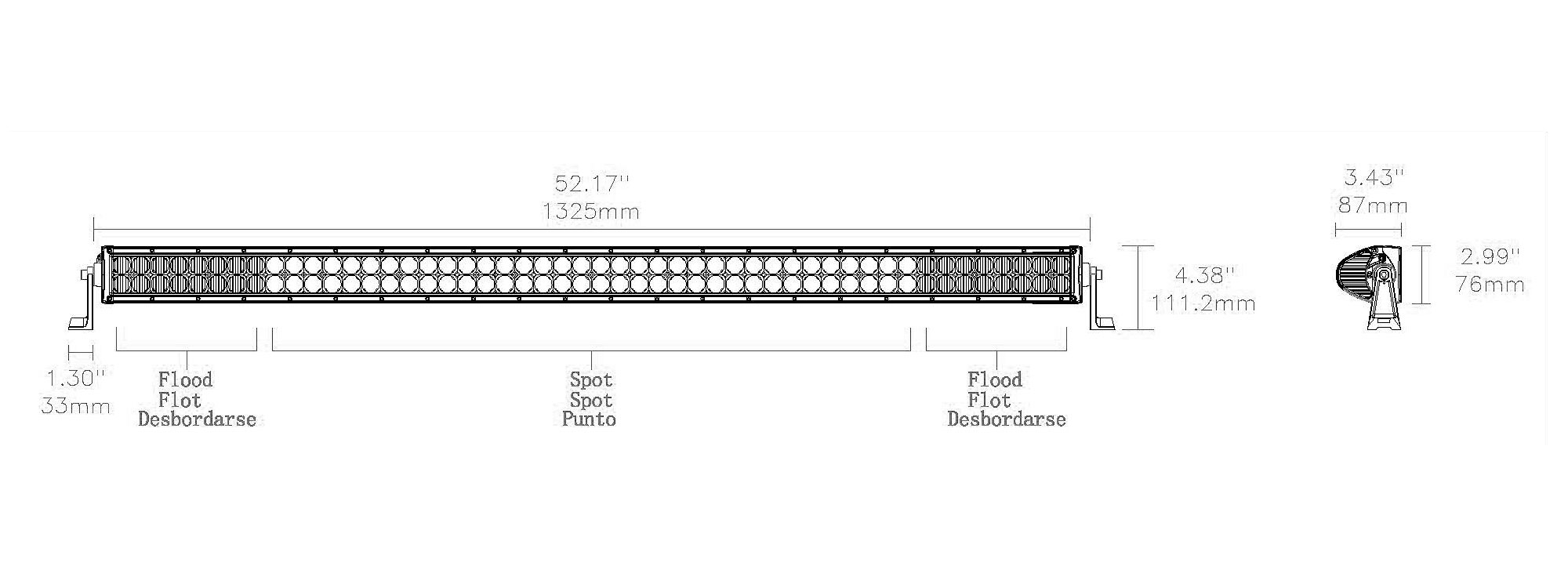

TECHNICAL DRAWINGS
- Drawings are set to inch-scale
- Click drawing above to open full size schematic
- Right-click and select "save Picture/Image as..."
52" LED DOUBLE ROW LIGHT BAR
Double stack high output LED light bar (300 watt) provides powerful, weatherproof lighting.
- 100 HIGH POWERED 3W LEDs
- 20000 RAW / 13489 EFFECTIVE LUMENS
- PATENT PENDING 4D OPTICS MAXIMIZES LUX
- OFF-ROAD TOUGH
- WEATHERPROOF / DUSTPROOF / RUSTPROOF / SHAKEPROOF
- 30,000 HOURS – LONG LASTING
- Able to withstand shock, vibration and extreme temperature
- Superior operational lifespan
- More durable than incandescent and halogen bulbs
- No warm up period – lights up instantly
- Tough on vibration: Exceeds SAE J575 requirement
- Comprehensive safeguard against dust and water: IP67 rating
- Polycarbonate lens – won’t discolor
SPECIFICATIONS
IP67 rating: Pressure washer safe
Housing Material: Extruded aluminum
Lens Material: High impact polycarbonate
Voltage: 12V
Amp: 17.6
Light Temperature: 6000K
INCLUDES
- Adjustable bracket fits various car models
- All hardware and instructions to mount the system
INSTRUCTIONS
WARNING
Please check local and state laws before installing this product onto your vehicle
