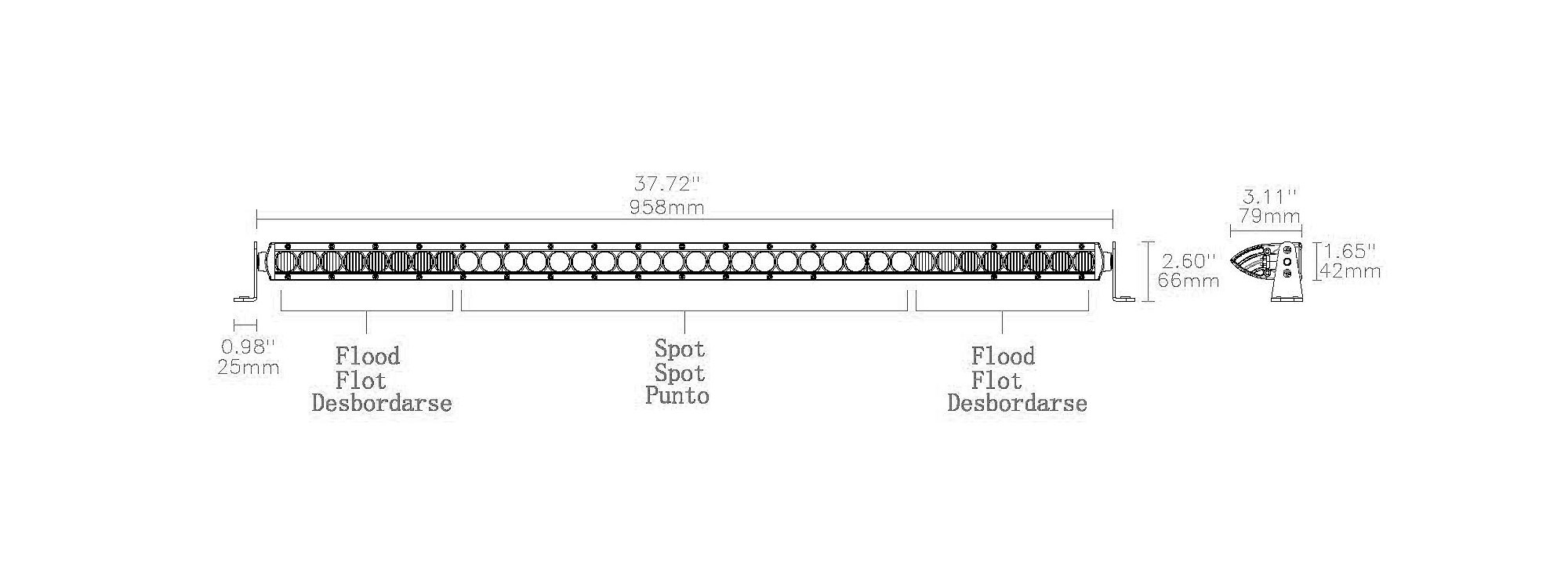

TECHNICAL DRAWINGS

  • Drawings are set to inch-scale
  • Click drawing above to open full size schematic
  • Right-click and select "save Picture/Image as..."











36" LED SINGLE ROW LIGHT BAR

Single row high output LED light bar (108 watt) provides powerful, weatherproof lighting.



  • 36 HIGH POWERED 3W LEDs
  • 7200 RAW / 5974 EFFECTIVE LUMENS
  • PATENT PENDING 4D OPTICS MAXIMIZES LUX
  • OFF-ROAD TOUGH
  • WEATHERPROOF / DUSTPROOF / RUSTPROOF /  SHAKEPROOF
  • 30,000 HOURS – LONG LASTING



  • Able to withstand shock, vibration and extreme temperature
  • Superior operational lifespan
  • More durable than incandescent and halogen bulbs
  • No warm up period – lights up instantly
  • Tough on vibration: Exceeds SAE J575 requirement
  • Comprehensive safeguard against dust and water: IP67 rating
  • Polycarbonate lens – won’t discolor



SPECIFICATIONS

IP67 rating: Pressure washer safe

Housing Material: Extruded aluminum

Lens Material: High impact polycarbonate

Voltage: 12V

Amp: 6.6

Light Temperature: 6000K



INCLUDES

  • Adjustable bracket fits various car models
  • All hardware and instructions to mount the system



INSTRUCTIONS



WARNING

Please check local and state laws before installing this product onto your vehicle
