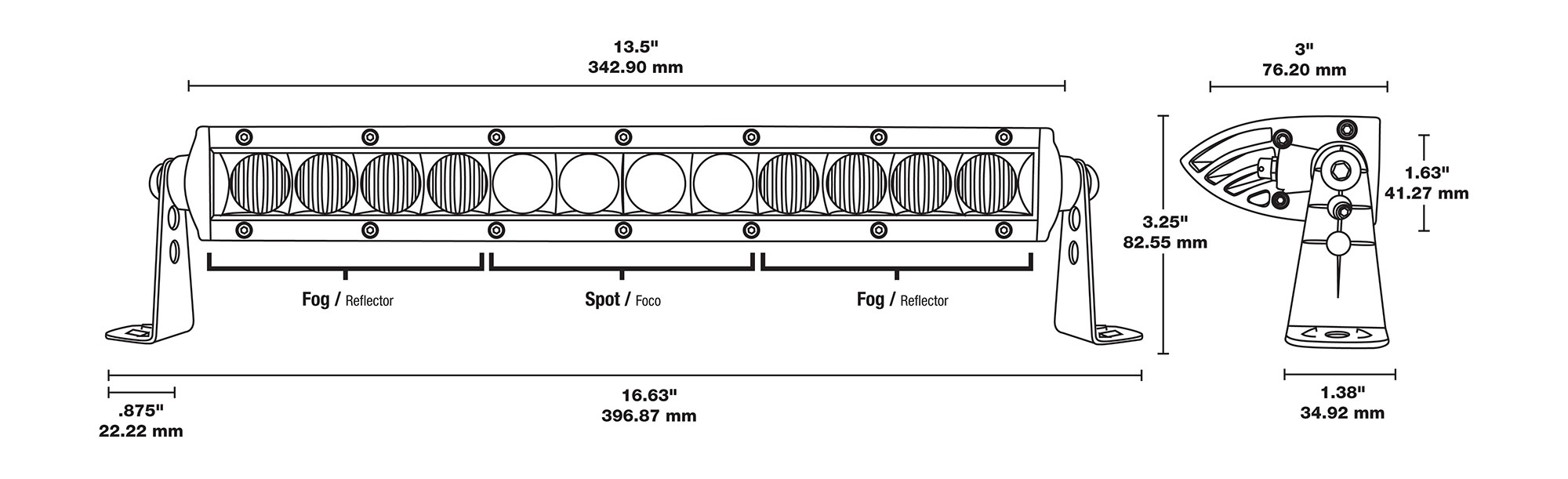

TECHNICAL DRAWINGS
- Drawings are set to inch-scale
- Click drawing above to open full size schematic
- Right-click and select "save Picture/Image as..."
13" LED COMBINATION (SPOT / FOG) LIGHT BAR
Single row high output LED light bar (36 watt) provides powerful, weatherproof lighting.
- 12 HIGH PERFORMING 3W LEDs
- 2400 RAW / 1510 EFFECTIVE LUMENS
- OFF-ROAD TOUGH
- WEATHERPROOF / DUSTPROOF / RUSTPROOF / SHAKEPROOF
- 30,000 HOURS – LONG LASTING
- Able to withstand shock, vibration and extreme temperature
- Superior operational lifespan
- More durable than incandescent and halogen bulbs
- No warm up period – lights up instantly
- Tough on vibration: Exceeds SAE J575 requirement
- Comprehensive safeguard against dust and water: IP67 rating
- Polycarbonate lens – won’t discolor
SPECIFICATIONS
Weatherproof: Yes
Housing Material: Die cast aluminum extrusion
Lens Material: High impact polycarbonate
Voltage: 12V
Amp: 1.8
Light Temperature: 6000K
INCLUDES
- Adjustable bracket fits various car models
- All hardware and instructions to mount the system
INSTRUCTIONS
WARNING
Please check local and state laws before installing this product onto your vehicle
